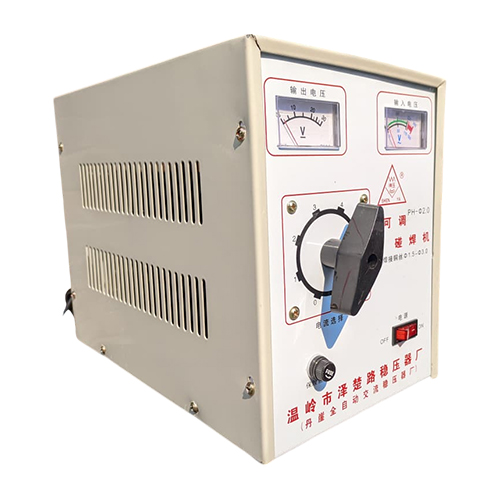

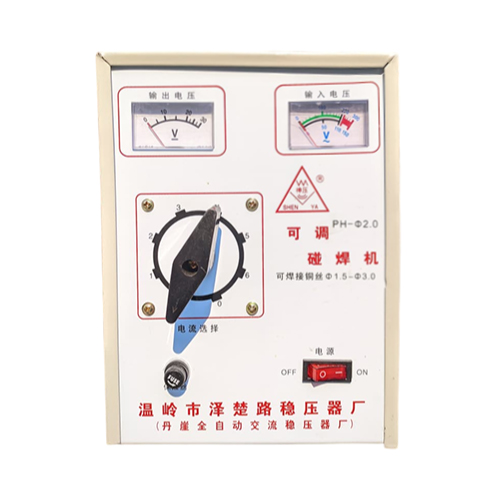

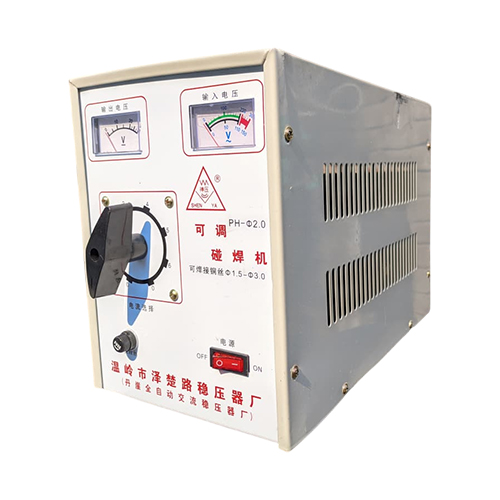

The butt welding machine is an ideal tool for replacing a soldering iron in the motor manufacturing and motor maintenance industries.

It features fast welding speed, excellent welding quality, and no need to scrape the enamel insulation when welding enameled wires.

▸ OPERATING METHODS

1. Connect the two wires equipped with long-nose pliers and carbon brushes to the binding posts at the back of the butt welding machine, respectively.

2 . Clamp the two wires to be welded with long-nose pliers. Scrape off the enamel insulation at the point clamped by the long-nose pliers to ensure electrical contact between the pliers and the two wires.

3. Adjust the current to an appropriate level (current adjustment is related to the thickness of the welding wires; the thicker the wires, the higher the welding current required).

4. Cut the two wires to be welded flush. Then touch the end of the butt welding machine equipped with carbon brushes against the two wires to be welded to generate an electric arc, allowing the two wires to fusion-weld together until the wire ends form a spherical shape.
