| Main Feature |
| Brand |
MOSDAR |
| Origin |
CHINA |
| Model |

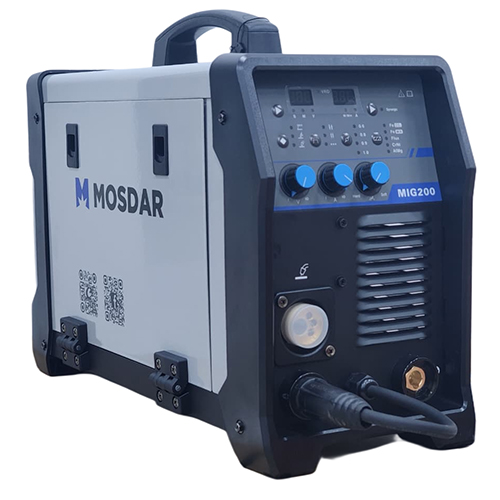

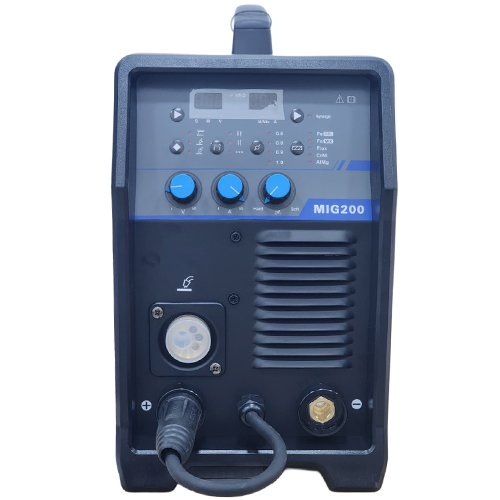

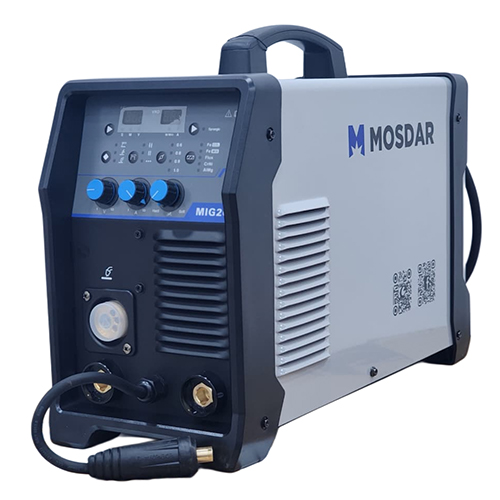

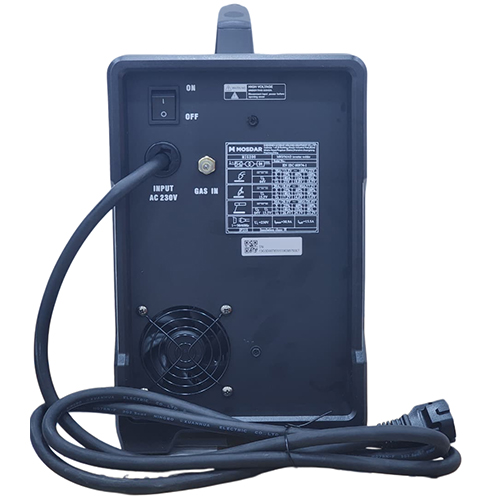

MIG 200 SYN |
| Rated input voltage (V) |
AC(220～240)V±15% 50/60HZ |
| Rated input power (KVA) |
6.9 |
| Rated input current (A) |
30.9 |
| Welding current range (MMA) |
20～160 |
| Welding current range (TIG) |
20～180 |
| Welding voltage range (MIG) |
30～180A / 11-26V |
| Wire feed speed range (m/min) |
1.5-15 |
| Rated duty cycle (%) |
25 |
| Open circuit voltage (V) |
U0: 64 Ur :15.5 |
| Overall efficiency (%) |
85 |
| Enclosure class |
21S |
| Power factor COSφ |
0.72 |
| Standard |
IEC60974-1 / EN60974-1 |
| Noise |
＜70 |
| Applicable electrode/wire |
1.6 – 4.0 / 0.6/0.8/0.9/1.0 |
| Weight (kg) |
10.8 |
