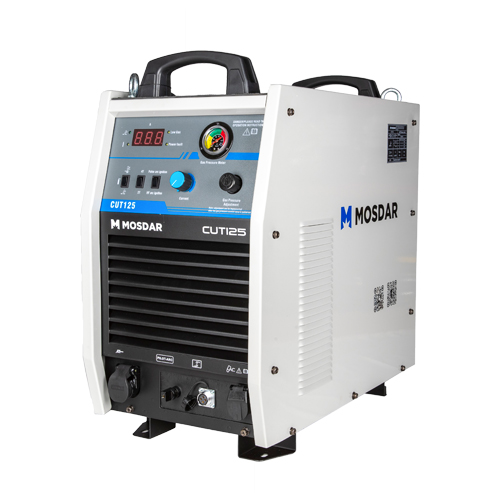

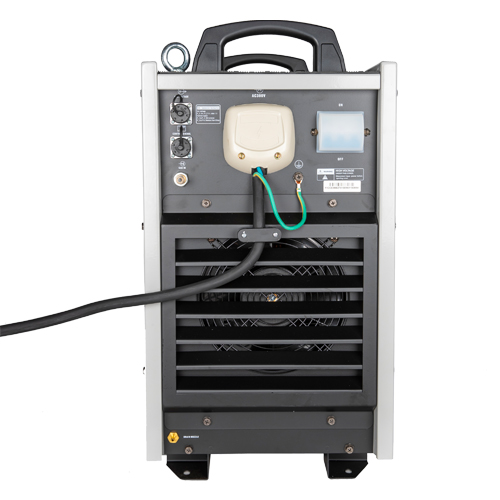

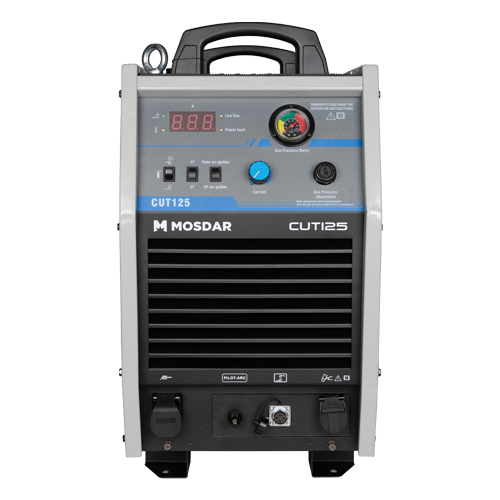

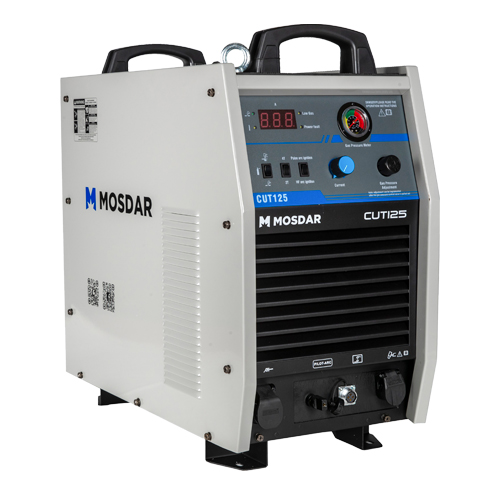

WELDING MACHINE PLASMA CUT 125 MOSDAR

Price:	157,000৳
Status :	In Stock
Product Code:	P3548
Brand:	Mosdar

157,000৳

Key Features

O.H. Protection
CNC
2T/4T
Gas check
HF ignition and pules ignition selection
Pilot arc
Mesh cutting and continuous cutting selection Optional
Mobile caster
Model:L3120A
Product Code: P3548

Payment Options

157,000৳

Cash Discount Price

Online / Cash Payment

13,083৳/month

Regular Price:

0% EMI for up to 6 Months***

Main Feature
Brand	MOSDAR
Origin	CHINA
Model	CUT 125
Input power source	380V
Rated input power (KVA)	23
Power Factory (cosθ)	0.9
Rated open circuit voltage (V)	350
Rated maximum output (A/V)	125/130
Cutting current (A)	30~125
Output characteristic	cc
Quality cutting thickness (mm)	30(carbon steel)
Max cutting thickness (mm)	50(carbon steel)
Recommended cutting pressure (kg/cm²)	4~6
Operating temperature (°C)	-10~+40
Storage temperature (°C)	-20~+55
Arc ingition type	Non-contact
Humidity (%)	≤90 (no water condensation
Protection class	IP23
Cooling mode	Forced air cooling
Duty cycle (%) @40°C	100
Insulation class	H
Dimensions (mm)	630X349X635
Net weight (Kg)	51

Description

With a 100% duty cycle, this plasma cutter is designed for CNC metal cutting.
Two arc ignition modes are available: HF ignition and high voltage pulse ignition.
Digital control enables precise cutting current and smart air cooling.
Mesh cutting is available
Separate air passage and IP23 rating ensure the reliable performance of the machine in harsh environments.
Upslope current helps reduce the impact of arc ignition on the machine's Circuit, improving reliability.
Constant pilot arc current technology effectively extends the life span of the cutting torch electrodes and nozzles.

Accessories

*6m CB150 torch + 4 core aviation plug

*300A earth clamp+10mm²X3m cable+quick plug

*2 pcs electrode

*2 pcs tip

*2.5X2 core aviation plug

*2.5X4 core aviation plug

*2 pcs Hose clamp

*Helmet

*Brush

*Gloves
