| Price: | 89,800৳ |
| Status : | In Stock |
| Product Code: | P4143 |
| Brand: | MOSDAR |
| Main Feature | ||
| Brand | MOSDAR | |
|---|---|---|
| Origin | CHINA | |

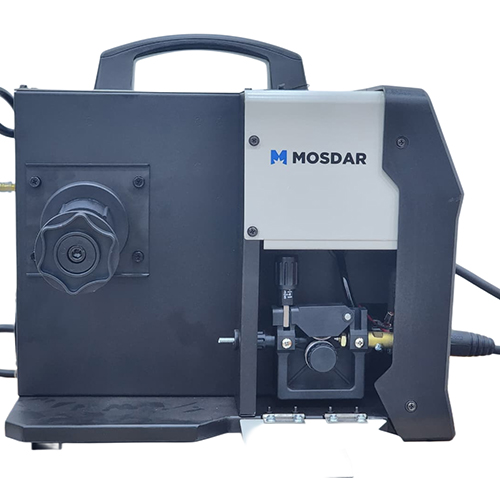

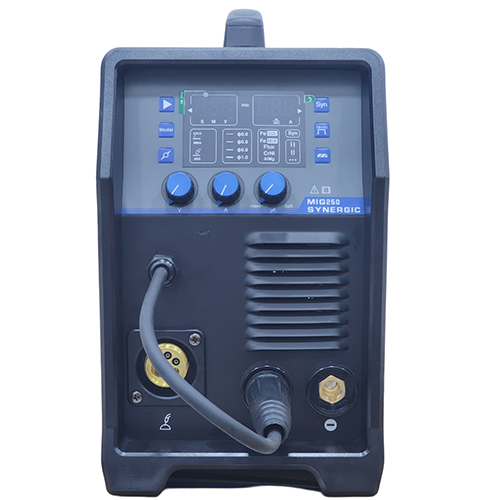

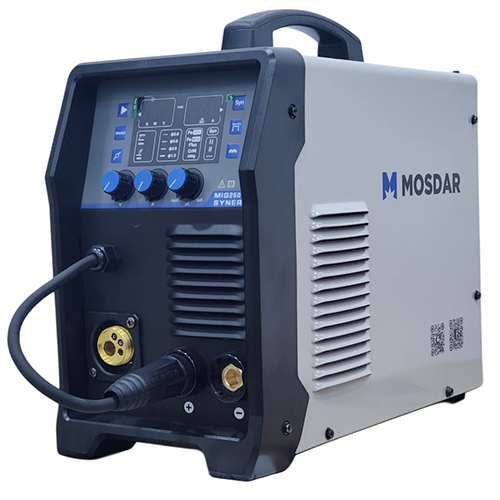

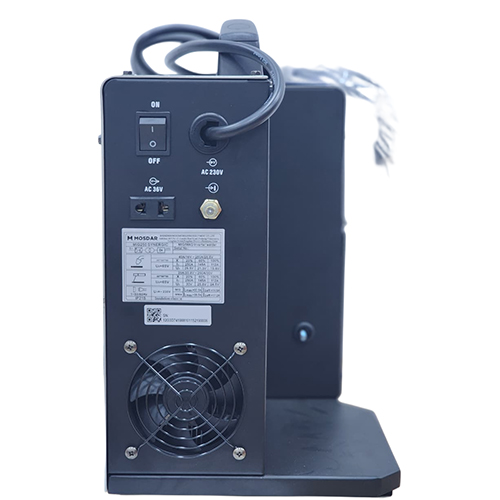

| Model | MIG 250 SYNERGIC | |
| Rated input power supply | 3~AC380V 50Hz/60Hz | |
| Rated input capacity (KVA) | 12.5 | |
| Power factor | 12.5 | |
| Efficiency (%) | ≧ 80% | |
| Rated duty cycle (%) | MMA: 25% / MIG: 20% | |
| No-load voltage (V) | 58 | |
| MIG maximum rated output (A/V) | 250A/26.5V | |
| MMA maximum rated output (A/V) | 200A/28V | |
| MIG welding voltage range (V) | 13V-31V | |
| MMA Welding current range (A) | 20A-200A | |
| Wire feed rate range (m/min) | 2 月24 日 | |
| Voltage of gas meter heater (V) | 36V AC | |
| Output characteristics | CC/CV | |
| Cooling method | gas cooling | |
| Working temperature range (℃ ) | -10 ～ +40 | |
| Storage temperature range (℃ ) | -10 ～ +50 | |
| Protection grade | IP21S | |
| Insulation grade | H | |
| Overall dimensions L×W×H (mm) | 620X370X490 | |
| Total weight (kg) Bare machine | 15.2 | |
| Net weight (Kg) | 15 | |
• MIG250 series products adopt an integrated structure
• The front plastic panel is high-end and element, with rich functions, and is convenient to operate
• The inverting frequency is high, and the electric arc is fine
• The transition is uniform and stable, and the weld appearance is beautiful
